Description
The absolute solution!
5 Year Warranty for all Inventor Air Conditioners
All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.
Eurovent certification
Features
Super Slim Design
Smaller indoor unit’s height compared to the conventional ones to ensure easy installation in the smaller places.
Static Pressure/ Air Flow Volume Settings
With the advanced technology of the new air Duct units, you can set either the available static pressure or the air flow volume depending on your plant’s duct network.

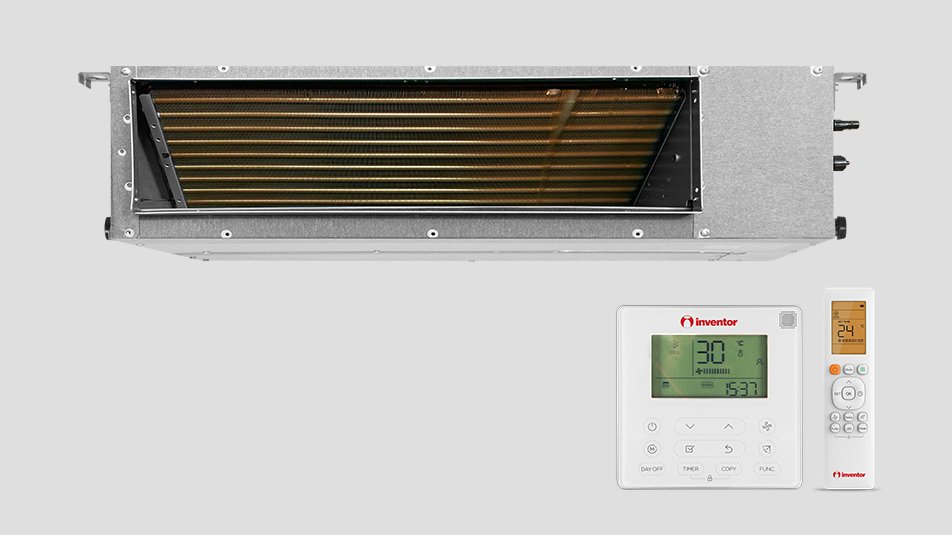

Weekly Planner Controller
Take advantage of the Weekly Planner and adjust according to your needs, the air conditioner’s operating period, ensuring maximum energy and money savings. The new advanced wired controller, shows up the error codes and additionally enables you to activate the room temperature sensor via the wired controller instead of the air conditioner.
Two Air Inlet Styles
Choose between the bottom or the rear side for the air intake. It can fit all needs of the installations. Flexible air intake from the back or the bottom part of the unit.
Built-in Drain Pump
The drain pump can lift the condensing water up to 750mm, serving every kind of installation. Refers to chest installations.
Super slim design
Static Pressure/ Air Flow Volume Settings
Two Air Inlet Styles
Weekly Planner Controller
Built-in drain pump
BMS Connectivity
Benefits
Fresh Air Intake
Provided to handle the fresh air load for a clean and healthy environment.
Wi-Fi Ready
Control your climate easily from wherever, with your Smartphone or Tablet. Download the app, Invmate II, for free via Google Play & App Store and set your temperature conditions.
Follow Me
A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.
Hotel Menu
Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.
Central Control Management (Optional)
The centralized multi-functional device can control up to 64 indoor units within a maximum connection length of 1200m. Control your air conditioner, set the temperature you want and select the mode you desire. Ideal for hotel & business units. *Requires separate purchase of connection kit
Remote On/Off
The variety of options provided by the pre-installed ON/OFF contact gives you the flexibility you need to manage your air conditioners, while saving time and energy. Install Door Switch or remote switches to turn units on or off easily and instantly.
BMS Connectivity
Complete your connected products portfolio by integrating Inventor air conditioners into your BMS (Building Management System). Create an integrated ecosystem that includes air conditioning, ventilation, lighting, and security systems, fully alignment with your building's needs. Enjoy quick, easy, and efficient management of all these different systems through central management and achieve optimum efficiency and comfort in your building. *Requires separate purchase of connection kit
Golden Fin
The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!
24-hour Timer
Set the unit to start and stop automatically in a 24h period.
Quiet Operation
Enjoy excellent temperature conditions and tranquil atmosphere. The advanced design of the unit, featuring larger gaps between air ducts and an improved fan tilt, facilitates airflow and ensures quiet, efficient performance. Additionally, Silent Mode further reduces noise levels, allowing you to enjoy a perfect atmosphere undisturbed.
Technical Specifications
- Cooling Capacity12.000 Btu / h
- Cooling Capacity3.52 kWatt
- Heating Capacity13.000 Btu / h
- Heating Capacity3.81 kWatt
- Voltage / Frequency / Phase220-240 / 50 / 1 V / Hz / Ph
- Current Input – Cooling1.1 A
- Current Input – Heating1.1 A
- Power Input – Cooling0.19 kW
- Power Input – Heating0.19 kW
- Air Flow Volume (High / Medium / Low)600 / 480 / 300 m3 / h
- Static Pressure0 – 60 Pa
- Noise Level (Silent / Low / Medium / High)23/29/30.5/34.5 dB(A)
- Sound Power Level58 dB(A)
- Dimensions WxDxH700x506x200 mm
- Net Weight17.8 kg
- Liquid Line1 / 4”
- Gas Line3 / 8”
- Cooling Capacity18.000 Btu / h
- Cooling Capacity5.28 kWatt
- Heating Capacity19.000 Btu / h
- Heating Capacity5.57 kWatt
- Voltage / Frequency / Phase220-240 / 50 / 1 V / Hz / Ph
- Current Input – Cooling1.3 A
- Current Input – Heating1.3 A
- Power Input – Cooling0.20 kW
- Power Input – Heating0.20 kW
- Air Flow Volume (High / Medium / Low)911/706/515 m3 / h
- Static Pressure0 – 100 Pa
- Noise Level (Silent / Low / Medium / High)26/34/38/41 dB(A)
- Sound Power Level58 dB(A)
- Dimensions WxDxH880x674x210 mm
- Net Weight24.4 kg
- Liquid Line1 / 4”
- Gas Line1 / 2”
More
Sleep Mode
With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.
Turbo Mode
This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.
Weekly Program Delay (Optional with the Weekly Planner Controller)
Enjoy the flexibility offered by the Delay function, postponing the activation of the weekly schedule for up to 3 hours. Change your device settings for a specific day without changing your weekly schedule settings.
Operation Mode Lock (Optional with the Weekly Planner Controller)
Ensure the operation of your appliance in cooling or heating without interference. With the locking feature, the operation of the air conditioner cannot be changed, avoiding incorrect settings, and offering a more correct and economical operation. Ideal for workplaces or hotel rooms.
Remote Controller Commands Deactivation (Optional with the Weekly Planner Controller)
Turn off the ability to use the wireless controller to adjust your air conditioner to ensure central control of the device from a single point. Suitable for business premises and hotels.
Low Ambient Cooling
The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.
Excellent Heating Performance Under -15°C
Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.
Error Alarm Port
Take the whole control of you unit! Thanks to the error code that will appear if an error occurs, you can always be safe and sure for the appropriate and most efficient operation of your air conditioner.
Auto Error Diagnosis
Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
