Description
Ideal temperature of high air quality in your place!

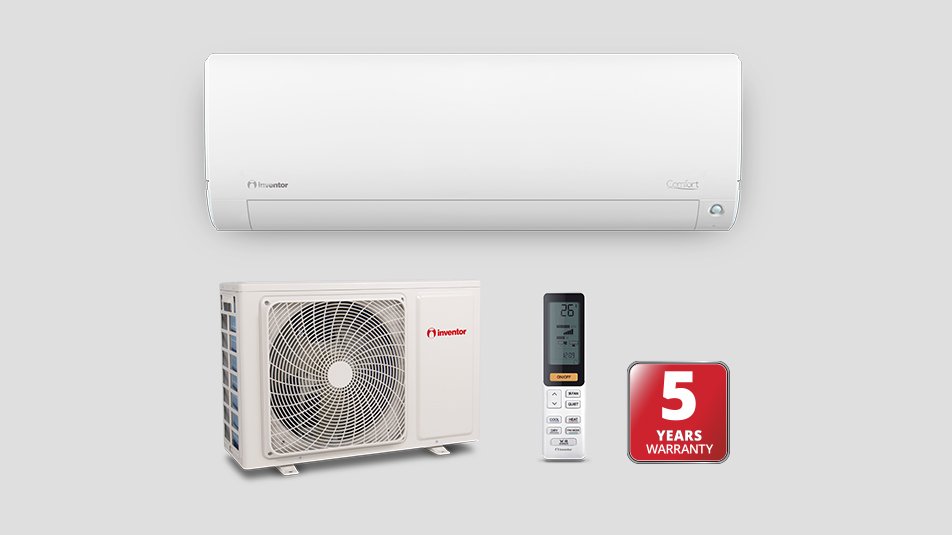

5 Year Warranty for all Inventor Air Conditioners
All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.
Eurovent certification
Features
Ultraviolet Type C & Ionizer Technology
Ultraviolet Type C Technology neutralizes viruses and bacteria, since thanks to ultraviolet light it "breaks" the molecular bonds of microorganisms that may be present inside the air conditioner, offering a perfectly healthy atmosphere in your space. The Ionizer ensures in a natural & effective way the removal of harmful suspended particles, such as germs, bacteria, viruses, pollen, smoke, dust, odors, etc. and provides air of high purity that offers a pleasant feeling of freshness and relieves you of the annoying effects. poor indoor air quality.

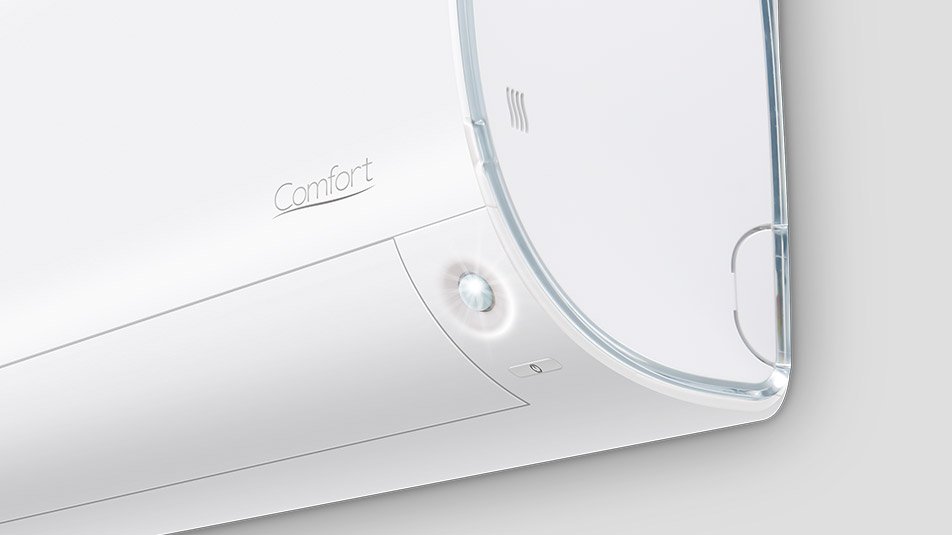

Motion Sensor
Create ideal conditions in your space, saving energy, with the innovative technology of the Motion Sensor. Adjust the airflow direction of your air conditioner where you are or vice versa and enjoy excellent comfort conditions. In addition, save money, thanks to the Motion Sensor's ability to reduce or enhance performance whenever it detects your presence or absence from the room.
Ultra Silence Mode 16dB(A)
Activate the silent operation of your air conditioner and enjoy the feeling of absolute silence. Thanks to the special design and the advanced technology of the air conditioner, you enjoy a low noise level, from 16dB(A).
56°C Sterilization
Take care of your health and the best air quality with the 56°C Sterilization function. The high temperature of 56°C that develops inside the unit sterilizes the device and neutralizes viruses and bacteria, such as the H1N1 virus and the bacterium Escherichia coli (99.9% sterilization rate), while removing the accumulated dust from inside. *The 56°C Sterilization Mode can only be activated by the Inventor Control application.

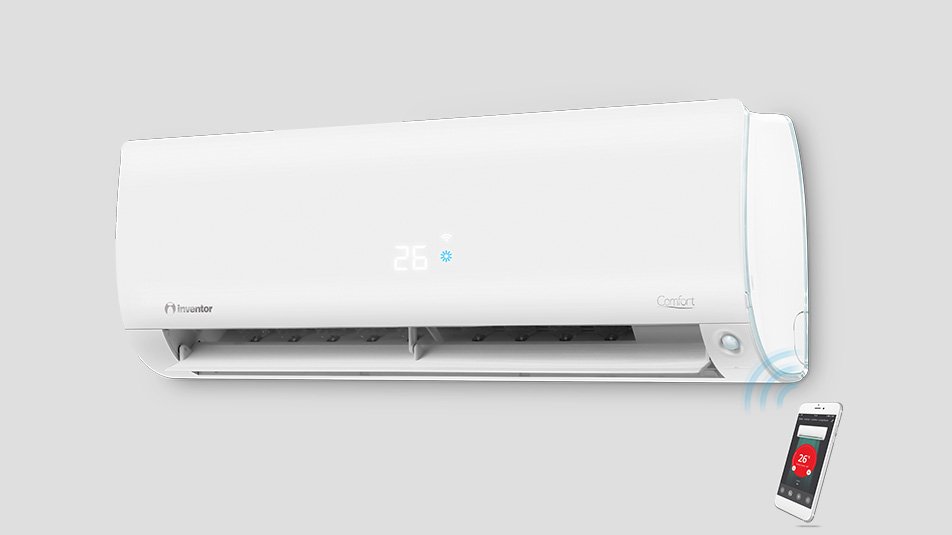

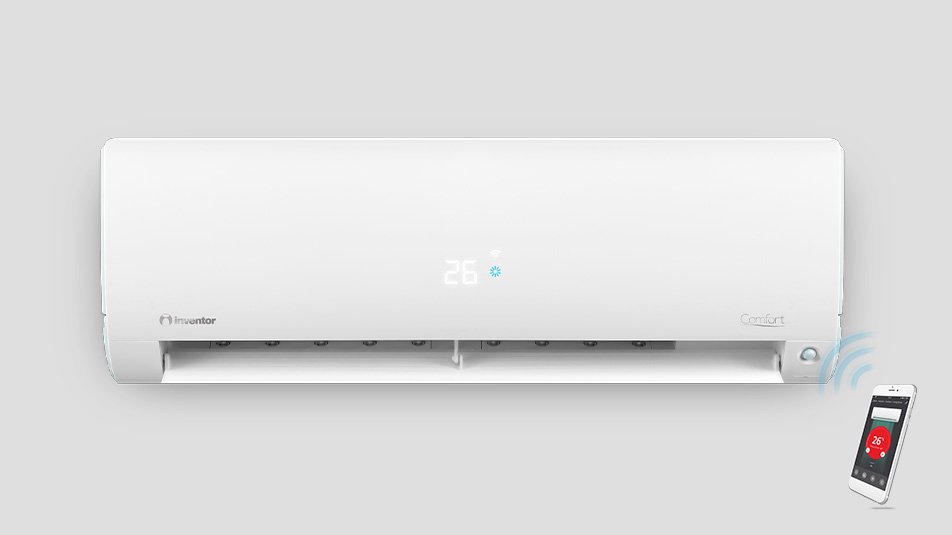

Wi-Fi Standard
Manage the operation of your air conditioner easily from wherever you are, with your Smartphone or Tablet. Free download the application via Google Play & App Store, depending on the series you have and achieve optimal temperature conditions with great energy savings.
Ultraviolet Type C Technology & Ionizer
Motion Sensor
Ultra Silence Mode 16dB(A)
56°C Sterilization
Wi-Fi Standard
Benefits
4 Way Air Flow
Ensure even distribution of air in all directions and cover even the most difficult parts of the room. The design of the series of air conditioners allows both horizontal and vertical movement of the blinds. Carefree & enjoy absolute comfort in every part of your home.
Smart Air Distribution
Meet your needs effectively, thanks to the special design for air distribution. Choose to diffuse air to the ceiling of the room for cooling mode to cool down quickly, avoiding exposure to cold air or to the floor in operation mode. heating, offering a warm atmosphere quickly. Enjoy ideal conditions in all seasons.
A+++ Energy Class
The technological superiority of the series guarantees excellent performances with the lowest operating costs. Take advantage of the highest energy class A+++ of Inventor air conditioners and create the perfect atmosphere exactly as you dream. At the same time save money while also taking care of the energy footprint by choosing an air conditioner with lower energy consumption.
Chasis Heating Belt
The chassis heating belt located on the bottom of the outdoor unit prevents the ice formation and guarantees the proper operation of you air conditioner, even at low temperatures, or under the most difficult weather conditions. This advanced feature is specially designed for installations at northern regions where the temperature often falls below 0°C, since it will maintain the high-performance of your air-conditioner offering cost savings and a comfortable and warm atmosphere during winter.
10°C Heating
Avoid possible weather disasters in places that are not heated during the winter, in the most economical way. Turn on the 10°C function and the air conditioner will heat the room as needed, keeping the temperature constant at 10°C. Protect the items in your space and ensure low consumption with maximum energy savings during the winter.
Powerful Self-Cleaning
The self-cleaning feature cleans the indoor unit effectively, removing dust, pollen, and microorganisms that accumulate from air conditioning use. Additionally, it diminishes excess moisture within the indoor unit generated during cooling mode. To maintain peak performance and ensure proper maintenance, it's best to conduct internal cleaning every month.
Low Ambient Heating at -20°C
The outdoor unit’s special design produces an efficient and effective heating operation even at -20°C.
Low Ambient Cooling at -20°C
The outdoor unit’s special design produces an efficient and effective cooling operation even at -20°C.
Sleep Mode
With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.
Technical Specifications
- Cooling Capacity8.870 (2.730-10.920) Btu / h
- Cooling Capacity Range2.6 (0.8-3.2) kWatt
- Heating Capacity10.920 (2.730-14.330) Btu / h
- Heating Capacity3.2 (0.8-4.2) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14825) - Cooling
- Pdesign2.6 kW
- Energy ClassA+++
- SEER8.5
- Energy Consumption107 kWh / year
- HeatingMiddle Zone
- Pdesign2.4 kW
- Energy ClassA++
- SCOP4.6
- Energy Consumption731 kWh / year
- HeatingWarm Zone
- Pdesign2.3 kW
- Energy ClassA+++
- SCOP5.1
- Energy Consumption631 kWh / year
- Voltage / Frequency / Phase220 – 240 / 50 / 1 V / Hz / Ph
- Current Input Cooling2.9 (0.9-5.5) Α
- Current Input Heating3.6 (1.3-6.8) Α
- Power Input Cooling0.60 (0.2-1.2) kW
- Power Input Heating0.80 (0.3-1.5) kW
- Air Flow Volume
(Turbo/High/Medium/Low/Silent)650/600/500/350/250 m³ / h - Noise Level Indoor Unit (Silent / Low / Medium / High)16/25/32/38 db(A)
- Noise Level Outdoor Unit47 db(A)
- Sound Power Level Indoor Unit53 db(A)
- Sound Power Level Outdoor Unit59 db(A)
- Dehumidifying Volume1.2 L/h
- Dehumidifying Volume28.8 L/day
- Compressor TypePanasonic
- Liquid Line / Gas Line1 / 4” | 3 / 8”
- Power Supply Wire Outdoor3 x 1.5 / 10 No x mm² / A
- Signal Wires4 × 1.5 No x mm²
- Dimensions

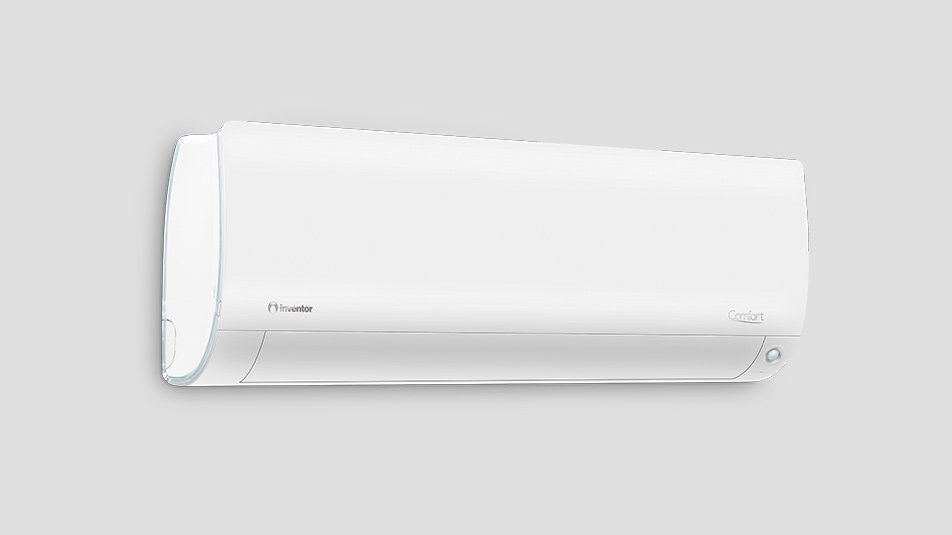

Indoor Unit
(WxDxH)856/197/300 mm - Dimensions

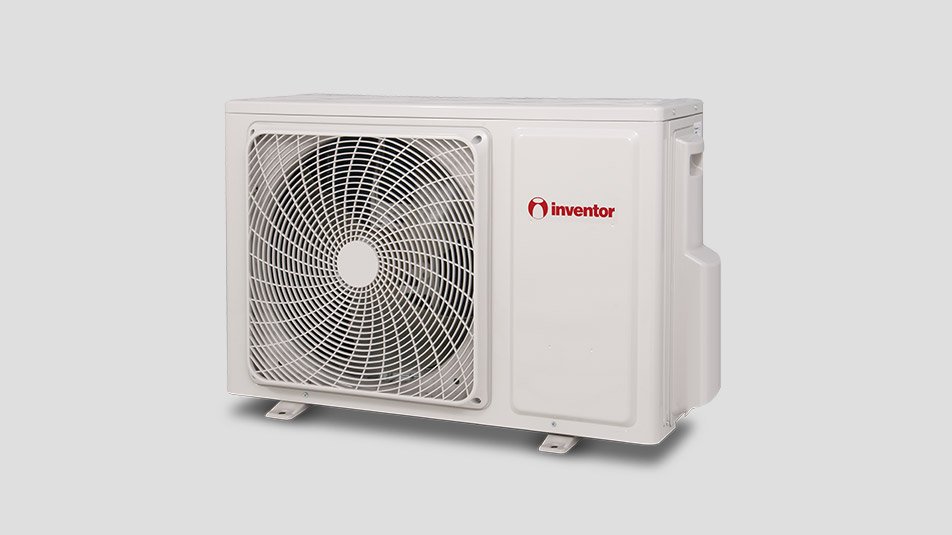

Outdoor Unit
(WxDxH)800/275/553 mm - Net Weight Indoor / Outdoor9.5/27.6 kg
- Refrigerant / ChargeR32 / 630 g
- Operation Temperature Range Outdoor Unit Cooling-20~43 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
- Cooling Capacity11.940 (3.410-13.650) Btu / h
- Cooling Capacity Range3.5 (1.0-4.0) kWatt
- Heating Capacity14.330 (3.410-17.740) Btu / h
- Heating Capacity4.2 (1.0-5.2) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14825) - Cooling
- Pdesign3.5 kW
- Energy ClassA+++
- SEER8.5
- Energy Consumption144 kWh / year
- HeatingMiddle Zone
- Pdesign2.8 kW
- Energy ClassA++
- SCOP4.6
- Energy Consumption854 kWh / year
- HeatingWarm Zone
- Pdesign2.8 kW
- Energy ClassA+++
- SCOP5.1
- Energy Consumption768 kWh / year
- Voltage / Frequency / Phase220 – 240 / 50 / 1 V / Hz / Ph
- Current Input Cooling3.9 (1.4-6.7) Α
- Current Input Heating5.0 (2.3-7.2) Α
- Power Input Cooling0.88 (0.3-1.5) kW
- Power Input Heating1.10 (0.5-1.6) kW
- Air Flow Volume
(Turbo/High/Medium/Low/Silent)700/650/550/400/300 m³ / h - Noise Level Indoor Unit (Silent / Low / Medium / High)17/26/33/39 db(A)
- Noise Level Outdoor Unit48 db(A)
- Sound Power Level Indoor Unit55 db(A)
- Sound Power Level Outdoor Unit61 db(A)
- Dehumidifying Volume1.6 L/h
- Dehumidifying Volume38.4 L/day
- Compressor TypeHitachi
- Liquid Line / Gas Line1 / 4” | 3 / 8”
- Power Supply Wire Outdoor3 x 1.5 / 10 No x mm² / A
- Signal Wires4 × 1.5 No x mm²
- Dimensions
Indoor Unit
(WxDxH)856/197/300 mm - Dimensions
Outdoor Unit
(WxDxH)800/275/553 mm - Net Weight Indoor / Outdoor9.5/30.0 kg
- Refrigerant / ChargeR32 / 780 g
- Operation Temperature Range Outdoor Unit Cooling-20~43 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
- Cooling Capacity17.740 (4.770-20.470) Btu / h
- Cooling Capacity Range5.2 (1.4-6.0) kWatt
- Heating Capacity20.470 (4.770-23.540) Btu / h
- Heating Capacity6.0 (1.4-6.9) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14825) - Cooling
- Pdesign5.2 kW
- Energy ClassA++
- SEER7.2
- Energy Consumption253 kWh / year
- HeatingMiddle Zone
- Pdesign4.6 kW
- Energy ClassA++
- SCOP4.6
- Energy Consumption1.401 kWh / year
- HeatingWarm Zone
- Pdesign4.8 kW
- Energy ClassA+++
- SCOP5.6
- Energy Consumption1.190 kWh / year
- Voltage / Frequency / Phase220 – 240 / 50 / 1 V / Hz / Ph
- Current Input Cooling6.2 (1.8-8.9) Α
- Current Input Heating6.7 (2.3-10.9) Α
- Power Input Cooling1.40 (0.5-2.0) kW
- Power Input Heating1.50 (0.5-2.4) kW
- Air Flow Volume
(Turbo/High/Medium/Low/Silent)1.050/900/750/650/550 m³ / h - Noise Level Indoor Unit (Silent / Low / Medium / High)28/37/41/45 db(A)
- Noise Level Outdoor Unit51 db(A)
- Sound Power Level Indoor Unit57 db(A)
- Sound Power Level Outdoor Unit63 db(A)
- Dehumidifying Volume2.0 L/h
- Dehumidifying Volume48.0 L/day
- Compressor TypeMitsubishi
- Liquid Line / Gas Line1 / 4” | 1 / 2”
- Power Supply Wire Outdoor3 x 2.5 / 16 No x mm² / A
- Signal Wires4 × 1.5 No x mm²
- Dimensions
Indoor Unit
(WxDxH)999/225/323 mm - Dimensions
Outdoor Unit
(WxDxH)820/338/614 mm - Net Weight Indoor / Outdoor12.0/37.8 kg
- Refrigerant / ChargeR32 / 950 g
- Operation Temperature Range Outdoor Unit Cooling-20~43 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
- Cooling Capacity23.890 (7.510-25.600) Btu / h
- Cooling Capacity Range7.0 (2.2-7.5) kWatt
- Heating Capacity27.300 (8.190-29.000) Btu / h
- Heating Capacity8.0 (2.4-8.5) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14825) - Cooling
- Pdesign7.0 kW
- Energy ClassA++
- SEER7.0
- Energy Consumption345 kWh / year
- HeatingMiddle Zone
- Pdesign5.6 kW
- Energy ClassA+
- SCOP4.0
- Energy Consumption1.959 kWh / year
- HeatingWarm Zone
- Pdesign5.2 kW
- Energy ClassA+++
- SCOP5.4
- Energy Consumption1.357 kWh / year
- Voltage / Frequency / Phase220 – 240 / 50 / 1 V / Hz / Ph
- Current Input Cooling9.6 (3.2-11.2) Α
- Current Input Heating9.6 (3.2-13.0) Α
- Power Input Cooling2.17 (0.7-2.5) kW
- Power Input Heating2.16 (0.7-2.9) kW
- Air Flow Volume
(Turbo/High/Medium/Low/Silent)1.250/1.100/950/850/700 m³ / h - Noise Level Indoor Unit (Silent / Low / Medium / High)33/37/43/47 db(A)
- Noise Level Outdoor Unit57 db(A)
- Sound Power Level Indoor Unit60 db(A)
- Sound Power Level Outdoor Unit70 db(A)
- Dehumidifying Volume2.8 L/h
- Dehumidifying Volume67.2 L/day
- Compressor TypeMitsubishi
- Liquid Line / Gas Line3 / 8” | 5 / 8”
- Power Supply Wire Outdoor3 x 2.5 / 16 No x mm² / A
- Signal Wires4 × 1.5 No x mm²
- Dimensions
Indoor Unit
(WxDxH)1.115/235/343 mm - Dimensions
Outdoor Unit
(WxDxH)890/353/697 mm - Net Weight Indoor / Outdoor15.2/49.0 kg
- Refrigerant / ChargeR32 / 1.300 g
- Operation Temperature Range Outdoor Unit Cooling-20~43 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
More
Turbo Mode
This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.
Louver Position Memory
Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
High Density Air Dust Filter
The exquisite filter optimizes the filtering effect by 40%.
Refrigerant Leakage Detect
Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
R32 ECO Refrigerant
The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.
48% Larger piping space
Thanks to the support base that extends to the back of the air conditioner, the technician ensures up to 48% more space during installation to complete the work comfortably and faster.
12 Grades Indoor FaRemovable cover for ease of installationan speeds
The technician now needs less time to install or maintain the device. The lid is easily removed from the bottom of the air conditioner so that the coolant can easily make the necessary connections without the use of tools.
Easy motor and electronic circuit maintenance
Removing the motor and the board is now an easy process as no disassembly of the other parts of the air conditioner is required. This saves 80% less time on air conditioner maintenance.
Flexible installation clip
The device has a flexible clip that facilitates its installation, while offering convenience during the service process.
