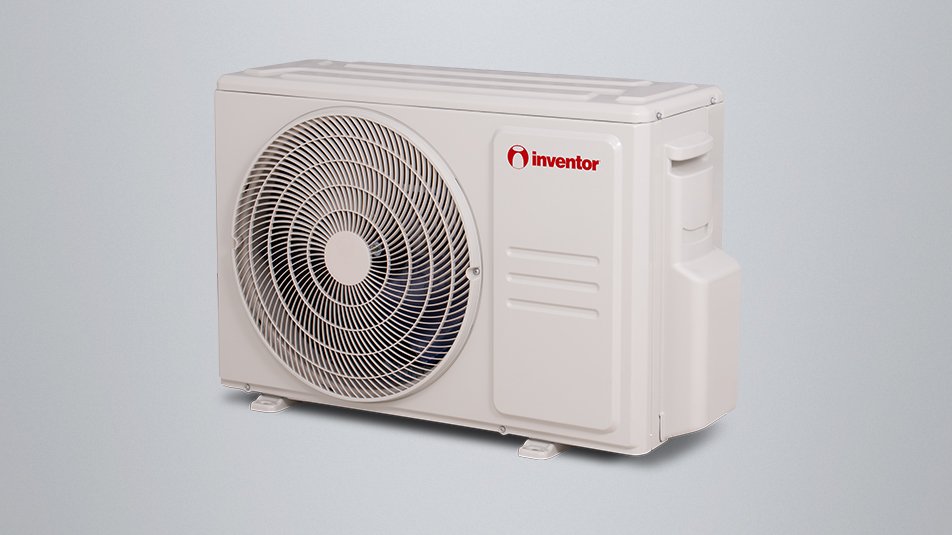

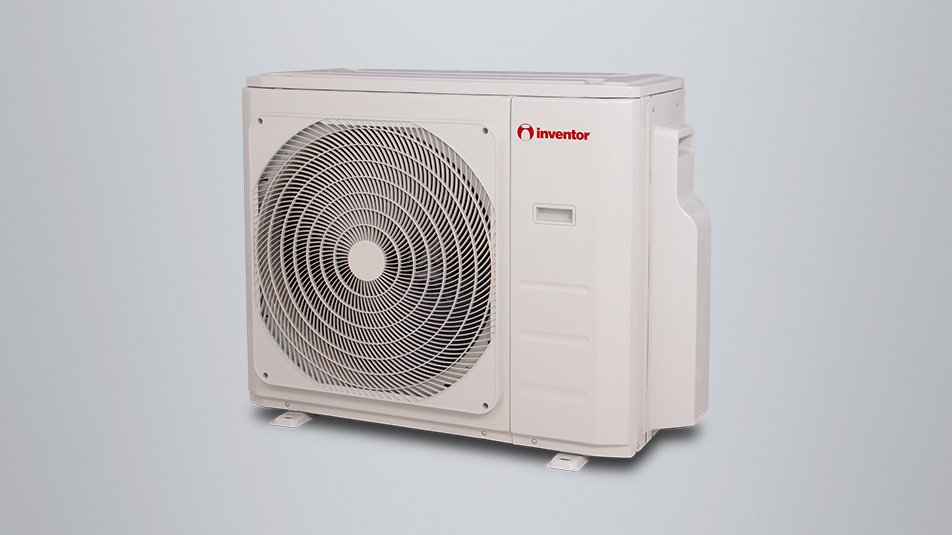

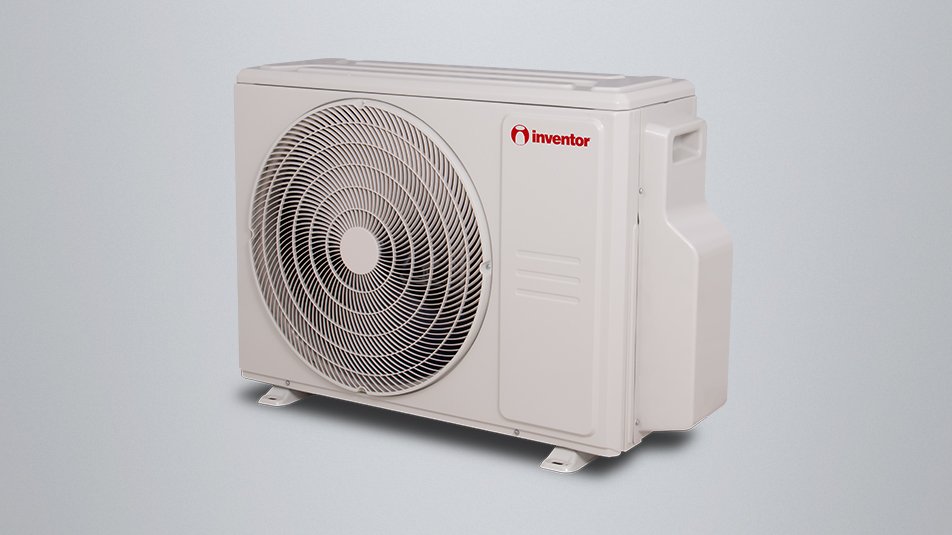

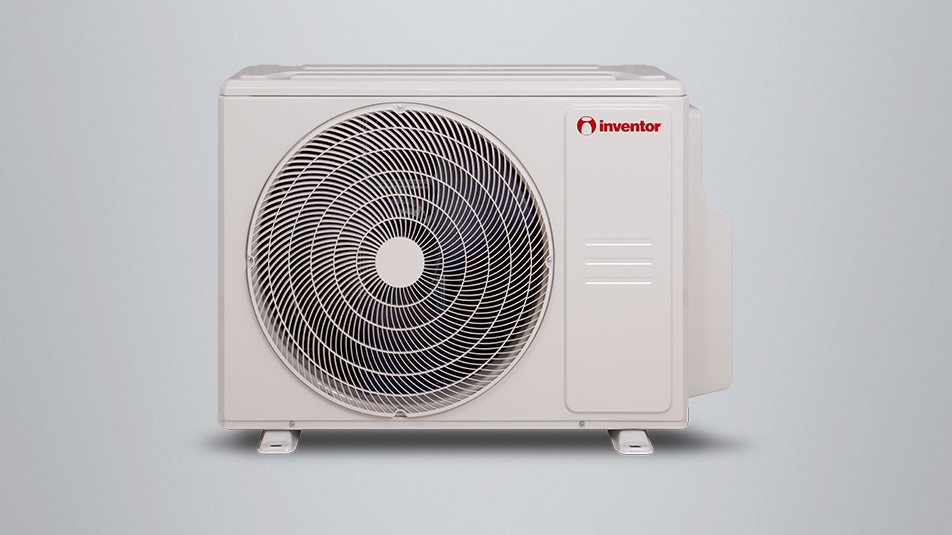

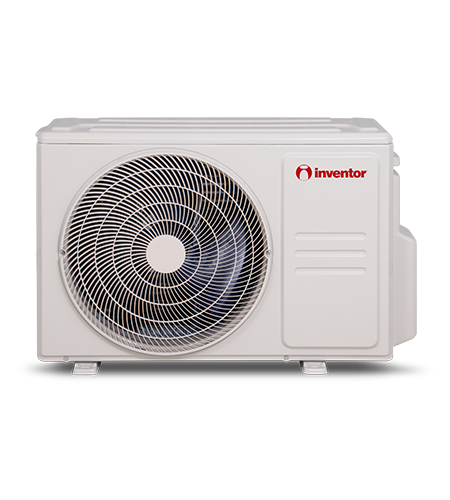

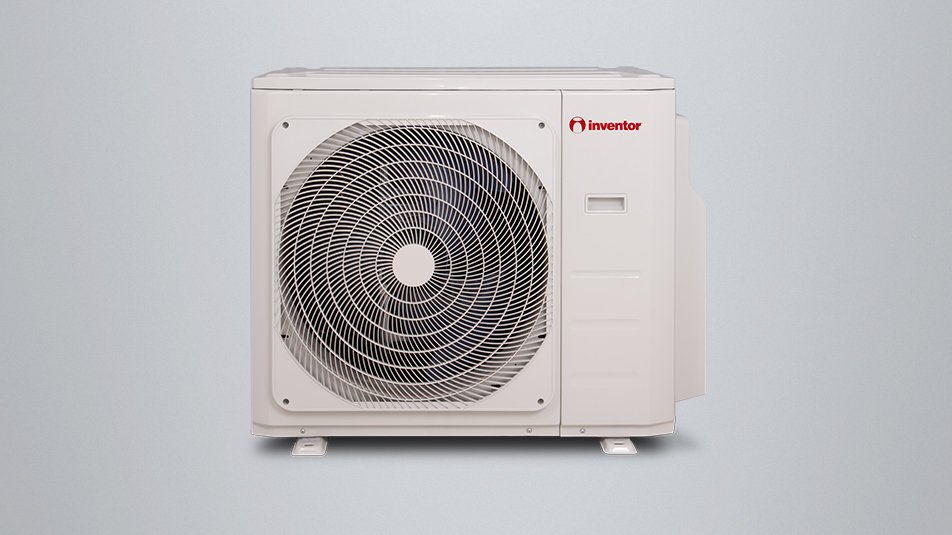

Outdoor Units

Multi-split outdoor air conditioner units of high resistance and performance!

  • Excellent performance thanks to the Electronic Expansion Valve per Circuit
  • Ultimate flexibility thanks to the Wide Range of Combinations
  • Complete protection of the unit thanks to the golden fin
  • Low functional cost for maximum savings thanks to the A++ Energy Class
  • Precise control with excellent energy savings thanks to the Wide Operation Range

[elementor-template id=”2377″]

Categories: ,

Description

Power and Reliability

5 Year Warranty for all Inventor Air Conditioners

All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.

Eurovent certification

Features

Electronic Expansion Valve per Circuit

Due to the independent electronic valve, Inventor air conditioners guarantee outstanding performance and excellent control of your systems. Create and enjoy the desired atmosphere in you place!

Wide Range of Combinations

Thanks to the advanced technology of the new Inventor Multi Indoor Air Conditioner units, you can connect up to 200 indoor units, covering every need of your building.

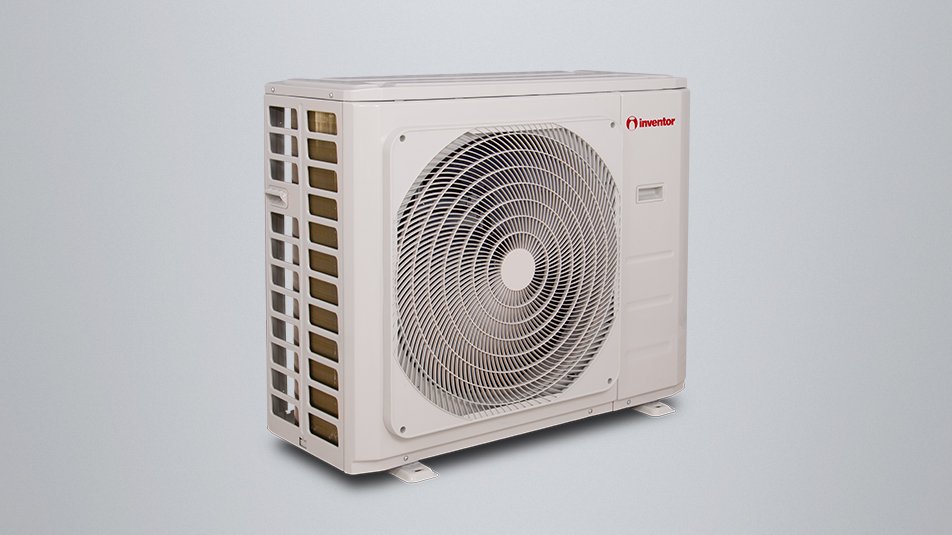

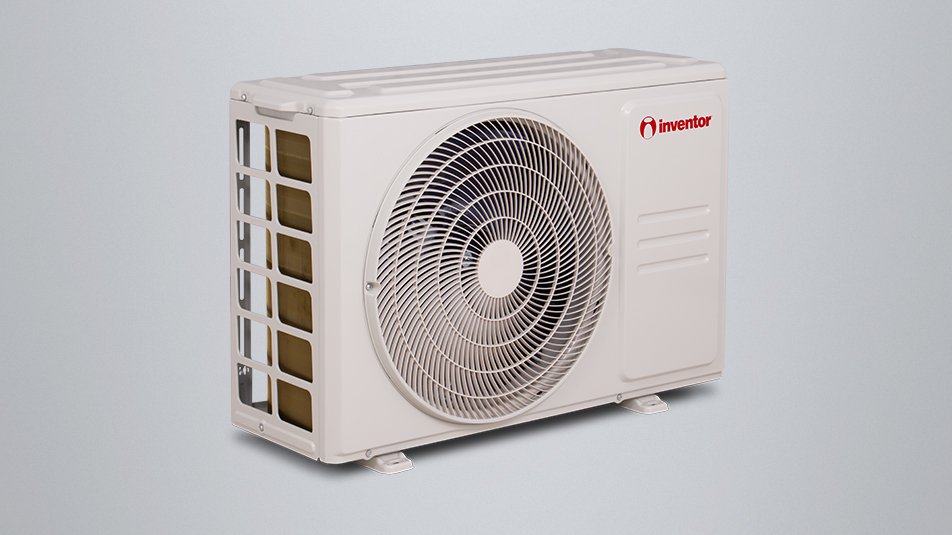

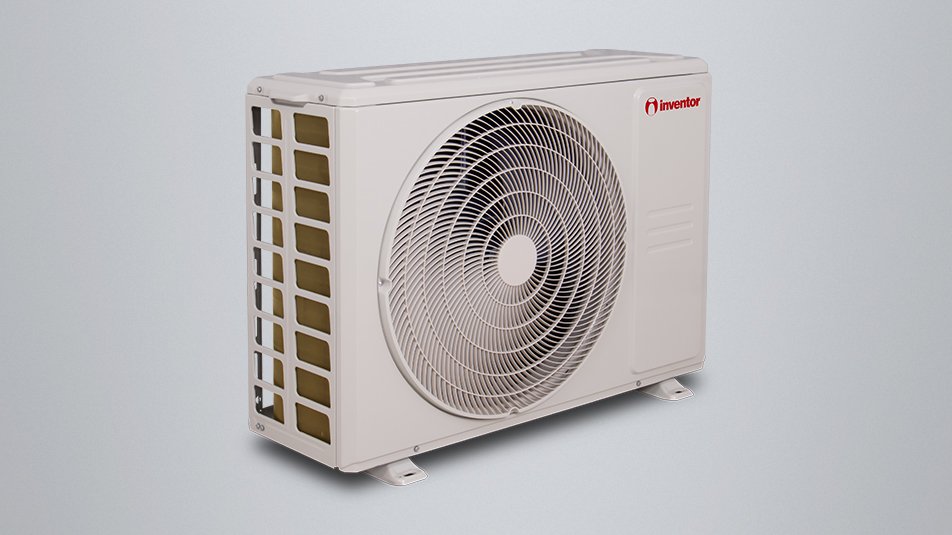

Golden Fin

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

A++ Energy Class

The higher and more efficient performance rating maximizes your energy savings.

Wide Operation Range

With up to 25 stages (F1-F25) compressor frequency. The frequency range is increased as much as 70%, allowing the system to run smoothly. Offers accurate results for a comfortable enviroment with the greatest energy savings.

Electronic expansion valve per circuit

Wide Range of Combinations

Golden Fin

A++ Energy Class

Wide operational range

Benefits

Flexible Installation

The upgraded series of Inventor outdoor Multi units, ensure great flexibility to install up to 5 indoor units of every kind. Maximum total pipe length up to 75m.

Robust Outdoor Design

The redesigned outdoor units are sturdier and easier for maintenance. The upside-down electrical box keeps the electrical parts dust free (up to 70% dust reduction) and the heating performance is increased even in lower outdoor temperature.

Quiet Operation

Enjoy excellent temperature conditions and tranquil atmosphere. The advanced design of the unit, featuring larger gaps between air ducts and an improved fan tilt, facilitates airflow and ensures quiet, efficient performance. Additionally, Silent Mode further reduces noise levels, allowing you to enjoy a perfect atmosphere undisturbed.

Excellent Heating Performance Under -15°C

Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.

Low Ambient Cooling

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.

Auto Restart

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Auto Error Diagnosis

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

All DC Inverter

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

R32 ECO Refrigerant

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

Technical Specifications

  • Cooling Capacity18.000 (7.600-19.000) Btu / h
  • Cooling Capacity5.28 (2.23-5.57) kWatt
  • Heating Capacity19.000 (7.980-19.200) Btu / h
  • Heating Capacity5.57 (2.34-5.63) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign5.3 kW
  • Energy ClassA++
  • SEER6.1
  • HeatingMiddle Zone
  • Pdesign4.3 kW
  • Energy ClassA+
  • SCOP4.0
  • Heating Warm Zone
  • Pdesign5.0 kW
  • Energy ClassA+++
  • SCOP5.1
  • Voltage/ Frequency/ Phase220-240/50/1 V / Hz / Ph
  • Indoor Number of Units (Min. – Max.)1 – 2
  • Noise Level56 db(A)
  • Sound Power Level65 db(A)
  • Dimensions
    (WxDxH)    805x330x554 mm
  • Net Weight35.0 kg
  • Compressor TypeROTARY
  • Liquid Line/ Gas Line2 x (1/4” | 3/8”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses    3×2.5/ 1×16 Α
  • Refrigerant / ChargeR32/1.250 g
  • Maximum Pipe Length Total40 m
  • Maximum Pipe Length
    For One Indoor Unit    25 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit    15 m
  • Max. Height Difference
    Between Indoor Units    10 m
  • Operation Temperature Range
    in Cooling    -15~50 °C
  • Operation Temperature Range
    in Heating    -15~24 °C
  • Cooling Capacity27.000 (10.200-29.000) Btu / h
  • Cooling Capacity7.91 (2.99-8.50) kWatt
  • Heating Capacity28.000 (7.500-29.000) Btu / h
  • Heating Capacity8.20 (2.21-8.50) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign7.9 kW
  • Energy ClassA++
  • SEER6.1
  • HeatingMiddle Zone
  • Pdesign5.3 kW
  • Energy ClassA+
  • SCOP4.0
  • Heating Warm Zone
  • Pdesign5.8 kW
  • Energy ClassA+++
  • SCOP5.1
  • Voltage/ Frequency/ Phase220-240/50/1 V / Hz / Ph
  • Indoor Number of Units (Min. – Max.)1 – 3
  • Noise Level58 db(A)
  • Sound Power Level68 db(A)
  • Dimensions
    (WxDxH)    890x342x673 mm
  • Net Weight48.0 kg
  • Compressor TypeROTARY
  • Liquid Line/ Gas Line3 x (1/4” | 3/8”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses    3×2.5/ 1×20 Α
  • Refrigerant / ChargeR32/1.850 g
  • Maximum Pipe Length Total60 m
  • Maximum Pipe Length
    For One Indoor Unit    30 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit    15 m
  • Max. Height Difference
    Between Indoor Units    10 m
  • Operation Temperature Range
    in Cooling    -15~50 °C
  • Operation Temperature Range
    in Heating    -15~24 °C
  • Cooling Capacity36.000 (7.000-36.000) Btu / h
  • Cooling Capacity10.55 (2.05-10.55) kWatt
  • Heating Capacity36.000 (8.000-38.000) Btu / h
  • Heating Capacity10.55 (2.34-11.13) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign10.6 kW
  • Energy ClassA++
  • SEER6.1
  • HeatingMiddle Zone
  • Pdesign8.4 kW
  • Energy ClassA+
  • SCOP4.0
  • Heating Warm Zone
  • Pdesign8.8 kW
  • Energy ClassA+++
  • SCOP5.1
  • Voltage/ Frequency/ Phase220-240/50/1 V / Hz / Ph
  • Indoor Number of Units (Min. – Max.)1 – 4
  • Noise Level63 db(A)
  • Sound Power Level68 db(A)
  • Dimensions
    (WxDxH)    946x410x810 mm
  • Net Weight68.8 kg
  • Compressor TypeROTARY
  • Liquid Line/ Gas Line3 x (1/4” | 3/8”) + 1x (1/4” | 1/2”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses    3×4.0/ 1×25 Α
  • Refrigerant / ChargeR32/2.100 g
  • Maximum Pipe Length Total80 m
  • Maximum Pipe Length
    For One Indoor Unit    35 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit    15 m
  • Max. Height Difference
    Between Indoor Units    10 m
  • Operation Temperature Range
    in Cooling    -15~50 °C
  • Operation Temperature Range
    in Heating    -15~24 °C
  • Cooling Capacity42.000 (10.800-42.000) Btu / h
  • Cooling Capacity12.31 (3.16-12.31) kWatt
  • Heating Capacity42.000 (11.500-42.000) Btu / h
  • Heating Capacity12.31 (3.37-12.31) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign12.3 kW
  • Energy ClassA+
  • SEER5.8
  • HeatingMiddle Zone
  • Pdesign9.5 kW
  • Energy ClassA+
  • SCOP3.8
  • Heating Warm Zone
  • Pdesign10.1 kW
  • Energy ClassA+++
  • SCOP5.1
  • Voltage/ Frequency/ Phase220-240/50/1 V / Hz / Ph
  • Indoor Number of Units (Min. – Max.)1 – 5
  • Noise Level62 db(A)
  • Sound Power Level70 db(A)
  • Dimensions
    (WxDxH)    946x410x810 mm
  • Net Weight74.1 kg
  • Compressor TypeROTARY
  • Liquid Line/ Gas Line4x (1/4” | 3/8”) + 1x (1/4” | 1/2”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses    3×4.0/ 1×25 Α
  • Refrigerant / ChargeR32/2.900 g
  • Maximum Pipe Length Total80 m
  • Maximum Pipe Length
    For One Indoor Unit    35 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit    15 m
  • Max. Height Difference
    Between Indoor Units    10 m
  • Operation Temperature Range
    in Cooling    -15~50 °C
  • Operation Temperature Range
    in Heating    -15~24 °C
