Description
High energy efficiency all year round!

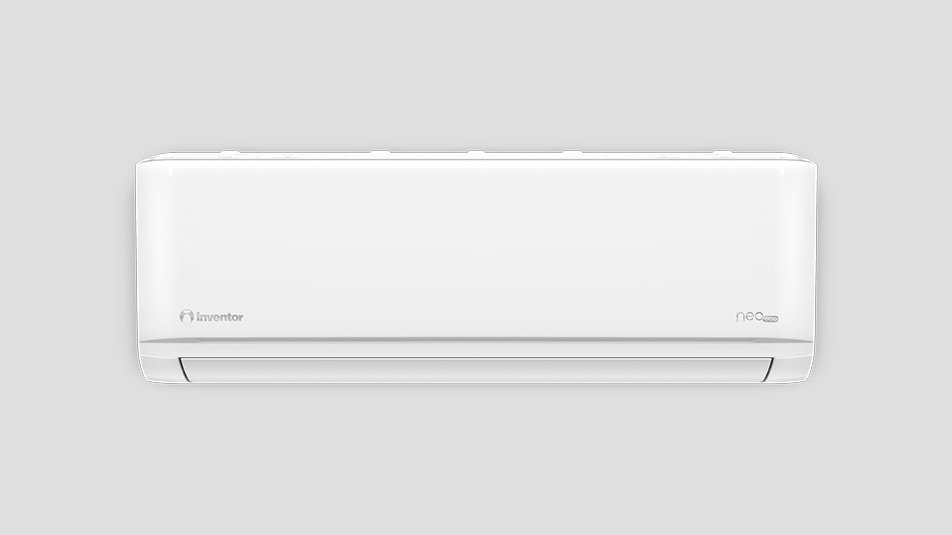

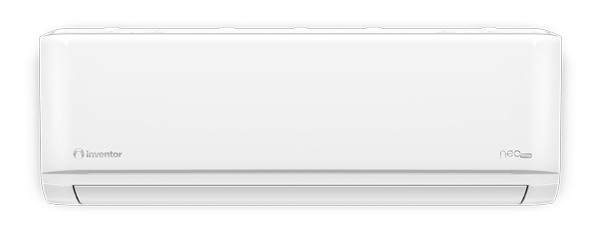

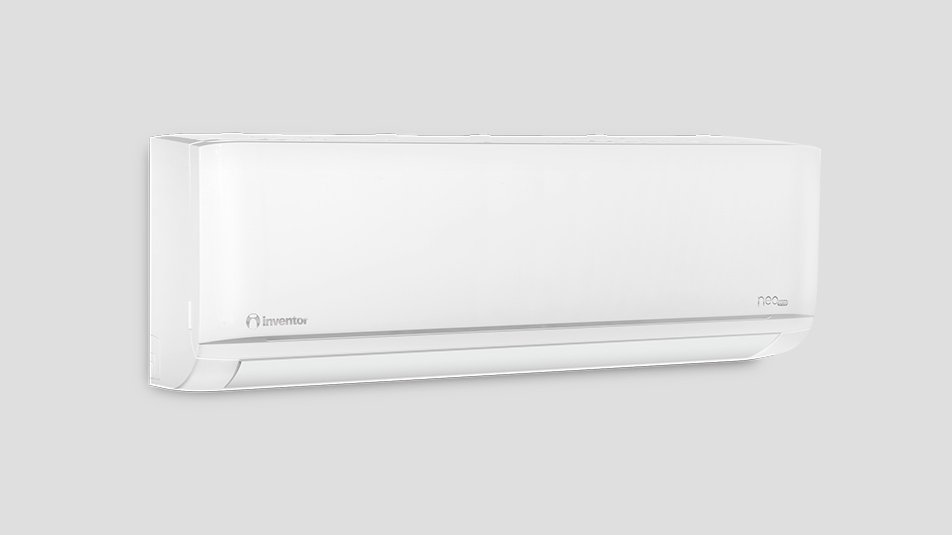

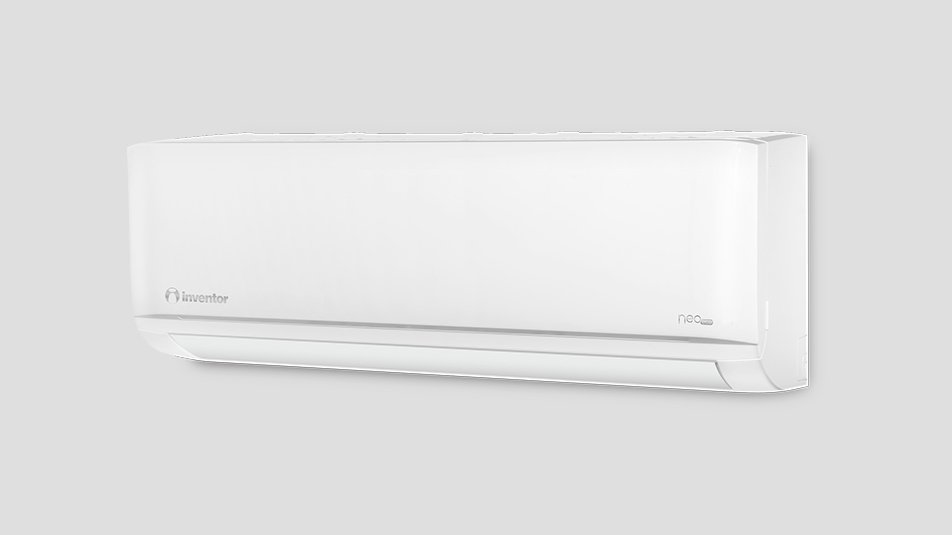

The new Neo Eco series air conditioners feature Energy Class A+++ both in cooling and heating. Practically an ‘all weather’ air conditioner, providing ideal atmosphere and top performance all year round. The iA Plus technology (Inverter Algorithm Plus) ensures smooth operation and low noise levels, while achieving energy efficiency and optimum appliance function. In addition, the Wi-Fi operation mode allows you to control your air conditioner from anywhere via smartphone or tablet, maximizing convenience and efficiency. Create your own smart scenarios and use voice commands through Siri, Alexa, and Google Assistant applications, transforming the Neo Eco air conditioner to YOUR personalized appliance. And we couldn’t talk about personalized comfort, without designing a feature like Breeze Away! A specially designed function that allows you to enjoy the wonderful sense of coolness, without the annoying feeling of cool air blowing directly on you. Finally, enjoy clean and healthy atmosphere, free from harmful microorganisms and dust thanks to UVC technology and the Ionizer function.
5 Year Warranty for all Inventor Air Conditioners
All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.
Eurovent certification
Features
A+++ Energy Class
The technological superiority of the series guarantees excellent performances with the lowest operating costs. Take advantage of the highest energy class A+++ of Inventor air conditioners and create the perfect atmosphere exactly as you dream. At the same time save money while also taking care of the energy footprint by choosing an air conditioner with lower energy consumption.
iA Plus (Inverter Algorithm Plus)
The advanced iA Plus algorithm upgrades compressor's operation to the ideal Hz levels, resulting to perfect, low noise operation, in every condition, any given moment. This high-end technology feature not only maximizes energy efficiency, but also ensures that your appliance will sustain its flowless operation for many years to come.
Wi-Fi Ready

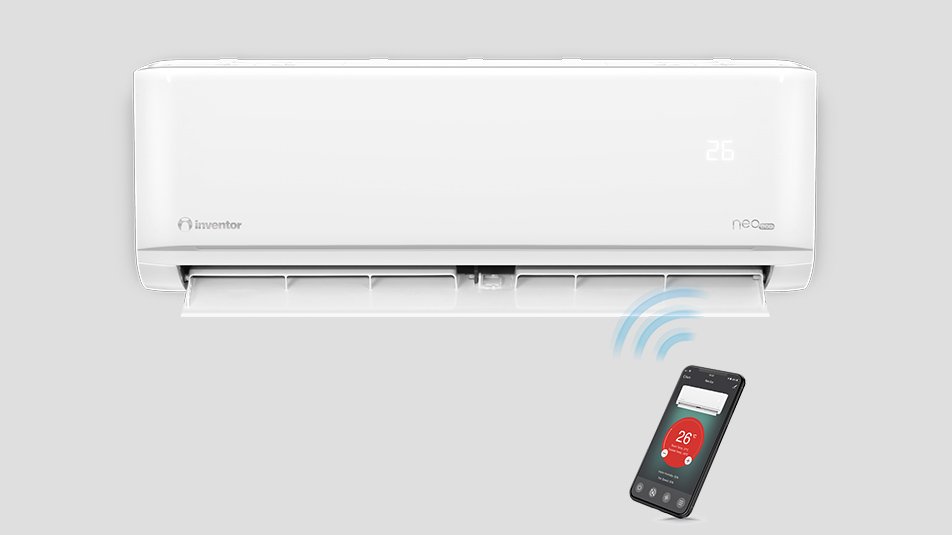

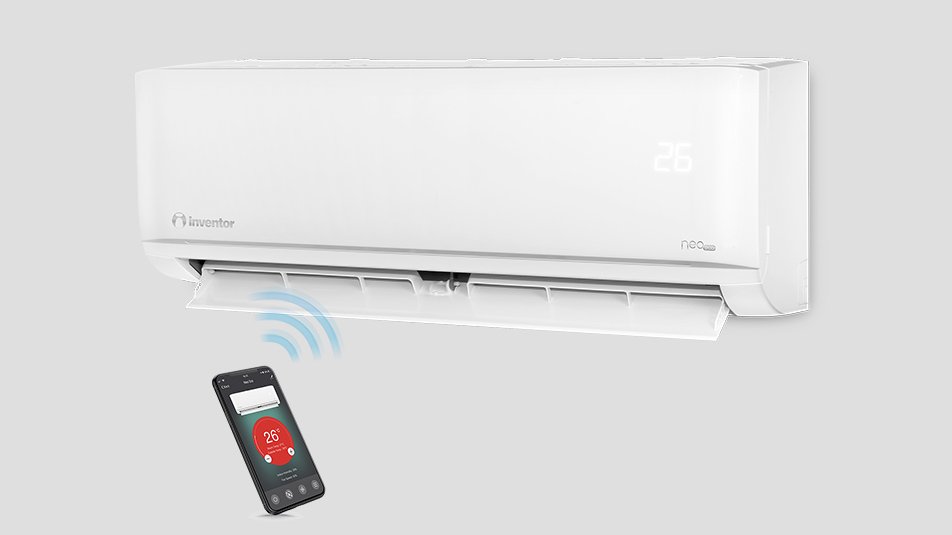

Control your climate easily from wherever, with your Smartphone or Tablet. Download the app, Invmate II, for free via Google Play & App Store and set your temperature conditions.
Breeze Away
The Breeze Away function ensures that the airflow of the air conditioner is not directed towards you. During Cooling, Fan and Dehumidification functions, the slope of the louver at 35° and the fan speed adjust automatically so that you can enjoy the right temperature in your place without the unpleasant sensation of the airflow directly pointing at you.
Ultraviolet Type C & Ionizer Technology
Ultraviolet Type C Technology neutralizes viruses and bacteria, since thanks to ultraviolet light it "breaks" the molecular bonds of microorganisms that may be present inside the air conditioner, offering a perfectly healthy atmosphere in your space. The Ionizer ensures in a natural & effective way the removal of harmful suspended particles, such as germs, bacteria, viruses, pollen, smoke, dust, odors, etc. and provides air of high purity that offers a pleasant feeling of freshness and relieves you of the annoying effects. poor indoor air quality.
A+++ Energy Class
iA Plus (Inverter Algorithm Plus)
Wi-Fi Standard
Breeze Away
Ultraviolet Type C & Ionizer Technology
Maximize the best air quality, free from bacteria and germs, with the Ultraviolet Type C & Ionizer Technology. The Ultraviolet Type C technology provides higher air quality by neutralizing microorganisms. The UV-C LED lamp emits ultraviolet light from 265 to 275nm wavelength. Thus, it can effectively remove 99.998% the virus SARS-CoV-2 (responsible for Covid-19), 91.47% the virus Influenza A H3N2 (responsible for the common cold), and 92.78% the bacteria Staphylococcus albus. The Ionizer improves the air quality removing airborne particles such as germs, bacteria, viruses, pollen, smoke, dust and odors, etc., in a natural and effective way.
- According to the tests performed at Texcell’s laboratories, it deactivates 99.998% of the virus SARS-CoV-2 (Covid-19) of the coronavirus group after 1 hour of operation in a 45L space.
Benefits
Ultra Silence Mode 19dB (A)
Activate the silent mode on your air conditioner and enjoy the feeling of absolute silence. Ensure low noise levels, from 19dB(A), thanks to the special design and advanced technology of the air conditioner. Create the ideal environment with the perfect temperature for incredible comfort without annoying and unwanted noise.
ECO mode
With the new ECO mode on your remote controller, you can set your air conditioner to operate at the lowest cost, achieving maximum energy savings & enjoying the greatest conditions in your place.
GEAR Mode
With the GEAR function you achieve great energy savings, limiting the maximum consumption of the unit. You can adjust the performance in two stages, at 75% of maximum efficiency and 50%. Take care of the right temperature in your space, reducing operating costs.
Follow Me

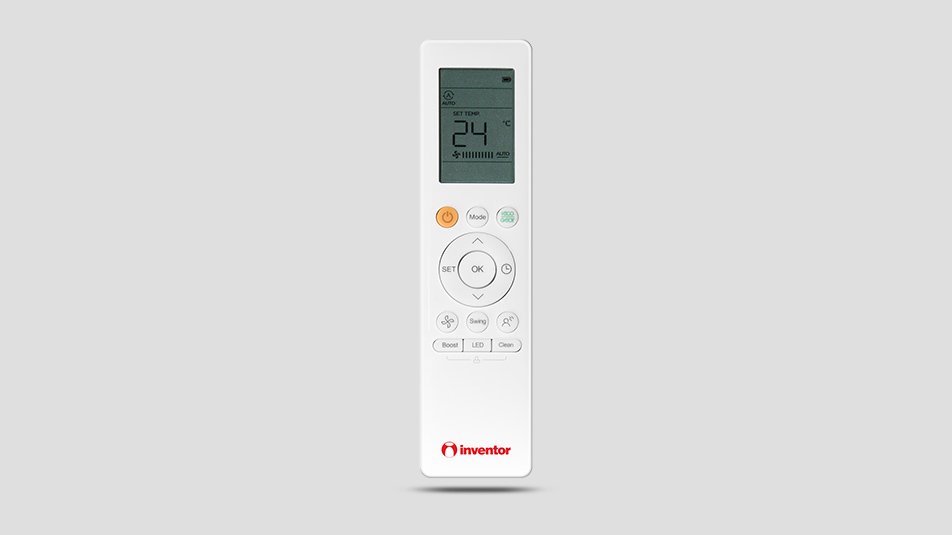

A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.
Low Ambient Heating at -20°C

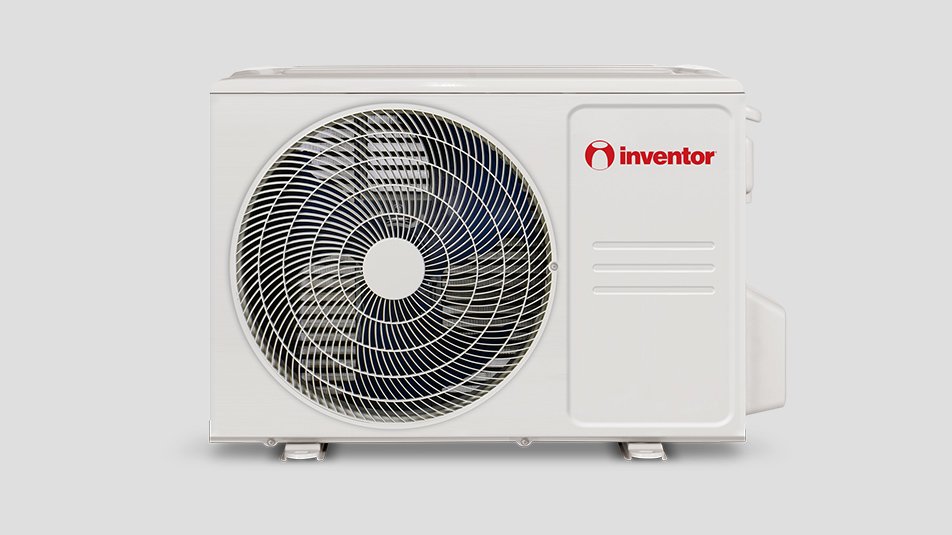

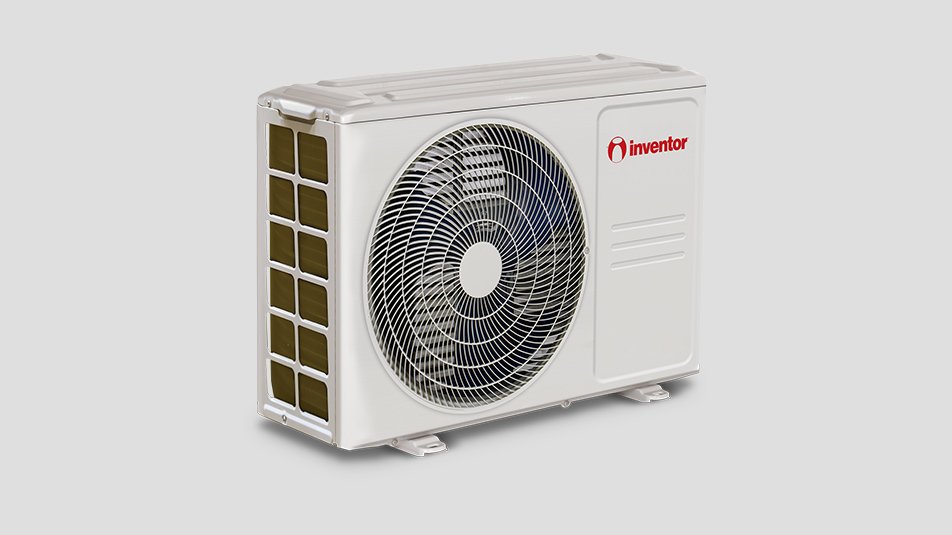

The outdoor unit’s special design produces an efficient and effective heating operation even at -20°C.
Hotel Menu
Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.
Central Control (Optional)
Centralized (for up to 64 indoor units), front desk, touch pad wired controller, Wi-Fi and many others. *Requires separate purchase of connection kit
Remote On/Off (Optional)
The variety of options provided by the pre-installed ON/OFF contact gives you the flexibility you need to manage your air conditioners, while saving time and energy. Install Door Switch or remote switches to turn units on or off easily and instantly. *Requires separate purchase of connection kit
4 Way Air Flow
Ensure even distribution of air in all directions and cover even the most difficult parts of the room. The design of the series of air conditioners allows both horizontal and vertical movement of the blinds. Carefree & enjoy absolute comfort in every part of your home.
Sterilization HEPA Filter
Removes even the smallest amount of dust from the air. It eliminates germs while reduces the chance of allergies and diseases, providing healthy pure air.
Technical Specifications
- Cooling Capacity9.000 (3.500-11.000) Btu / h
- Cooling Capacity2.64 (1.03-3.22) kWatt
- Heating Capacity10.000 (2.800-11.500) Btu / h
- Heating Capacity2.93 (0.82-3.37) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14.825) - Cooling
- Pdesign2.6 kW
- Energy ClassA+++
- SEER8.8
- Energy Consumption103 kWh / year
- HeatingMiddle Zone
- Pdesign2.4 kW
- Energy ClassA++
- SCOP4.6
- Energy Consumption730 kWh / year
- HeatingWarm Zone
- Pdesign2.7 kW
- Energy ClassA+++
- SCOP6.0
- Energy Consumption630 kWh / year
- Voltage / Frequency / Phase220-240/50/1 V / Hz / Ph
- Current Input Cooling2.73 (0.35-4.78) Α
- Current Input Heating2.83 (0.32-4.32) Α
- Power Input Cooling0.63 (0.08-1.10) kW
- Power Input Heating0.65 (0.07-0.99) kW
- Air Flow Volume
(High/Medium/Low)510/360/300 m³ / h - Noise Level Indoor Unit (Silent / Low / Med / Hi)19/22/31/37 db(A)
- Noise Level Outdoor Unit54 db(A)
- Noise Level Indoor Unit54 db(A)
- Noise Level Outdoor Unit58 db(A)
- Dehumidifying Volume1.2 L/h
- Dehumidifying Volume28.8 L/day
- Compressor TypeROTARY
- Liquid Line / Gas Line1 / 4” / 3 / 8”
- Power Supply Wire Outdoor3 x 1.5 / 10 No x mm² / A
- Signal Wires5 × 1.5 No x mm²
- Dimensions
Indoor Unit
(WxDxH)802x200x295 mm - Dimensions
Outdoor Unit
(WxDxH)765x303x555 mm - Net Weight Indoor / Outdoor8.7/26.4 kg
- Refrigerant / ChargeR32/620 g
- Operation Temperature Range Outdoor Unit Cooling-15~50 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
- Cooling Capacity12.000 (4.700-14.700) Btu / h
- Cooling Capacity3.52 (1.38-4.31) kWatt
- Heating Capacity13.584 (3.640-14.950) Btu / h
- Heating Capacity3.98 (1.07-4.38) kWatt
- Seasonal Efficiency
(In accordance to ΕΝ14.825) - Cooling
- Pdesign3.5 kW
- Energy ClassA+++
- SEER8.5
- Energy Consumption144 kWh / year
- HeatingMiddle Zone
- Pdesign2.6 kW
- Energy ClassA++
- SCOP4.6
- Energy Consumption791 kWh / year
- HeatingWarm Zone
- Pdesign3.1 kW
- Energy ClassA+++
- SCOP6.0
- Energy Consumption723 kWh / year
- Voltage / Frequency / Phase220-240/50/1 V / Hz / Ph
- Current Input Cooling4.37 (0.6-7.2) Α
- Current Input Heating4.24 (0.7-6.78) Α
- Power Input Cooling0.99 (0.13-1.65) kW
- Power Input Heating1.02 (0.16-1.56) kW
- Air Flow Volume
(High/Medium/Low)520/370/310 m³ / h - Noise Level Indoor Unit (Silent / Low / Med / Hi)21/22/33/39 db(A)
- Noise Level Outdoor Unit54.5 db(A)
- Noise Level Indoor Unit55 db(A)
- Noise Level Outdoor Unit61 db(A)
- Dehumidifying Volume1.6 L/h
- Dehumidifying Volume38.4 L/day
- Compressor TypeROTARY
- Liquid Line / Gas Line1 / 4” / 3 / 8”
- Power Supply Wire Outdoor3 x 1.5 / 10 No x mm² / A
- Signal Wires5 × 1.5 No x mm²
- Dimensions
Indoor Unit
(WxDxH)802x200x295 mm - Dimensions
Outdoor Unit
(WxDxH)765x303x555 mm - Net Weight Indoor / Outdoor8.7/26.4 kg
- Refrigerant / ChargeR32/620 g
- Operation Temperature Range Outdoor Unit Cooling-15~50 °C
- Operation Temperature Range Outdoor Unit Heating-20~24 °C
More
Golden Fin
The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!
8°C Heating
Prevent potential weather damages in places that are not heated and pose risks during the winter. Enable the 8°C function and the air conditioner only heats the room as needed while maintaining a stable room temperature of 8°C.
High Density Air Dust Filter
The exquisite filter optimizes the filtering effect by 40%.
Low Ambient Cooling
The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.
24-hour Timer
Set the unit to start and stop automatically in a 24h period.
Intelligent Defrost
Power saving and improved heating efficiency by intelligent defrost. Intelligent Defrost is achieved only by sensors that they control the need and duration of defrost process.
Sleep Mode
With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.
Temperature Offset Function
The perceived temperature by the indoor unit sensor may vary from the real temperature of the room, due to the position of the unit. Thanks to this function you can minimize the difference and achieve better conditions in your place.
Anti-Cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation.
12 Grades Indoor Fan speeds
Up to 12 grades indoor fan speeds, ensure more accurate control and brings more comfortable air flow.
5 Grades Outdoor Fan Speeds
Due to the DC fan motor, outdoor fan speeds increase from 2 grades to 5 grades, more comfortable and reinforces energy saving.
Turbo Mode
This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
Louver Position Memory
Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
Two-way Draining
Both left and right sides of the indoor unit are possible for drainage hose connection, easy for installation.
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
Emergency Using Mode
When temperature sensor error happens, the air conditioner will display error code and stop immediately, while AC displays error and continues running in a proper status, to avoid the case that AC is in urgent need.
Refrigerant Leakage Detect
Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected.
Auto Error Diagnosis
Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
1W StandBy
Power consumption from 1.0W in StandBy mode for higher energy savings.
Lock
Engage the lock function to prevent anyone from changing the settings or children playing with the unit.
R32 ECO Refrigerant
The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.
