Description
Unique functions & excellent performance for a perfectly healthy atmosphere!
5 Year Warranty for all Inventor Air Conditioners
All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.
Eurovent certification
Features
Air Conditioner & Purifier - 2 in 1
Protect yourself and your loved ones by providing a clean and healthy environment with the IFD Electrostatic Sterilization Filter. The IFD Filter creates an intense dielectric field which ionizes and sterilizes the air. The high precision PM2.5 air quality sensor detects airborne particles as little as 2.5μm. The colored indication light on the display will show you the air quality in three colors - green for great, orange for good and red for poor. *Air purification up to 200m³/h CADR.
56°C Sterilization
Take care of your health and the best air quality with the 56°C Sterilization function. The high temperature of 56°C that develops inside the unit sterilizes the device and neutralizes viruses and bacteria, such as the H1N1 virus and the bacterium Escherichia coli (99.9% sterilization rate), while removing the accumulated dust from inside. *The 56°C Sterilization Mode can only be activated by the Inventor Control application.
Silver Nano-Particles Technology
Maintain a healthy atmosphere with the Silver Nano-Particles Technology. The inner parts are enriched with silver nano-particles, helping the air conditioner maintain clean. They also prevent mold and fungi growth, and neutralizes up to 99% of bacteria. *Contributes to the prevention of fungi growth:Aspergillus niger, Aspergillus terreus, Paecilomyces Varioti, Penicillium funicolosum, Aureobasium Pullalans, Chaetoomium globsum, Aspergillus brasiliensis, Aureobasium Pullulans, Chaetoomium Trichodium. **Contributes to the neutralization of bacteria:Staphylococcus Aureus and Escherichia coli.
Motion Sensor
Create ideal conditions in your space, saving energy, with the innovative technology of the Motion Sensor. Adjust the airflow direction of your air conditioner where you are or vice versa and enjoy excellent comfort conditions. In addition, save money, thanks to the Motion Sensor's ability to reduce or enhance performance whenever it detects your presence or absence from the room.
A+++ Energy Class
The technological superiority of the series guarantees excellent performances with the lowest operating costs. Take advantage of the highest energy class A+++ of Inventor air conditioners and create the perfect atmosphere exactly as you dream. At the same time save money while also taking care of the energy footprint by choosing an air conditioner with lower energy consumption.
Air Conditioner & Purifier - 2 in 1
Protect yourself and your loved ones by providing a clean and healthy environment with the IFD Electrostatic Sterilization Filter. The IFD Filter creates an intense dielectric field which ionizes and sterilizes the air. The high precision PM2.5 air quality sensor detects airborne particles as little as 2.5μm. The colored indication light on the display will show you the air quality in three colors – green for great, orange for good and red for poor.
*Air purification up to 200m³/h CADR.
56°C Sterilization
Take care of your health and the best air quality with the 56°C Sterilization function. The high temperature of 56°C that develops inside the unit sterilizes the device and neutralizes viruses and bacteria, such as the H1N1 virus and the bacterium Escherichia coli (99.9% sterilization rate), while removing the accumulated dust from inside.
*The 56°C Sterilization Mode can only be activated by the Inventor Control application.
Silver Nano-Particles Technology
Maintain a healthy atmosphere with the Silver Nano-Particles Technology. The inner parts are enriched with silver nano-particles, helping the air conditioner maintain clean. They also prevent mold and fungi growth, and neutralizes up to 99% of bacteria.
*Contributes to the prevention of fungi growth:Aspergillus niger, Aspergillus terreus, Paecilomyces Varioti, Penicillium funicolosum, Aureobasium Pullalans, Chaetoomium globsum, Aspergillus brasiliensis, Aureobasium Pullulans, Chaetoomium Trichodium.
**Contributes to the neutralization of bacteria:Staphylococcus Aureus and Escherichia coli.
Motion Sensor
Create ideal conditions in your space, saving energy, with the innovative technology of the Motion Sensor. Adjust the airflow direction of your air conditioner where you are or vice versa and enjoy excellent comfort conditions. In addition, save money, thanks to the Motion Sensor’s ability to reduce or enhance performance whenever it detects your presence or absence from the room.
Energy Class A+++
BMS Connectivity
Benefits
Ultra Silence Mode 15dB(A)
Activate the silent operation and relish the feeling of absolute silence. Because of the specialized design and technologies included, you can achieve low noise levels, from 15dB(A). Create excellent conditions at home, without any unnecessary noises.
Remote On/Off (Optional)
The variety of options provided by the pre-installed ON/OFF contact gives you the flexibility you need to manage your air conditioners, while saving time and energy. Install Door Switch or remote switches to turn units on or off easily and instantly.
Central Control (Optional)
Centralized (for up to 64 indoor units), front desk, touch pad wired controller, Wi-Fi and many others. *Requires separate purchase of connection kit
BMS Connectivity
Complete your connected products portfolio by integrating Inventor air conditioners into your BMS (Building Management System). Create an integrated ecosystem that includes air conditioning, ventilation, lighting, and security systems, fully alignment with your building's needs. Enjoy quick, easy, and efficient management of all these different systems through central management and achieve optimum efficiency and comfort in your building. *Requires separate purchase of connection kit
Wi-Fi Standard

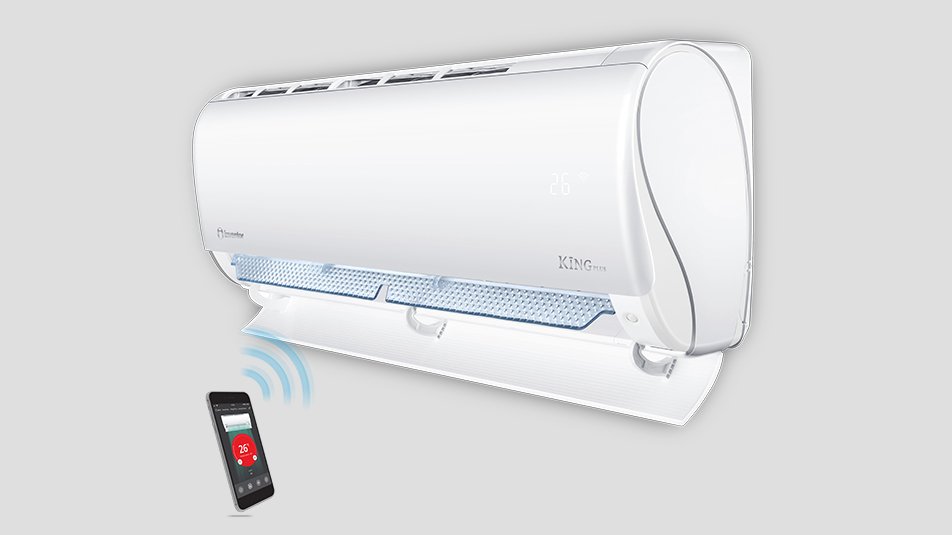

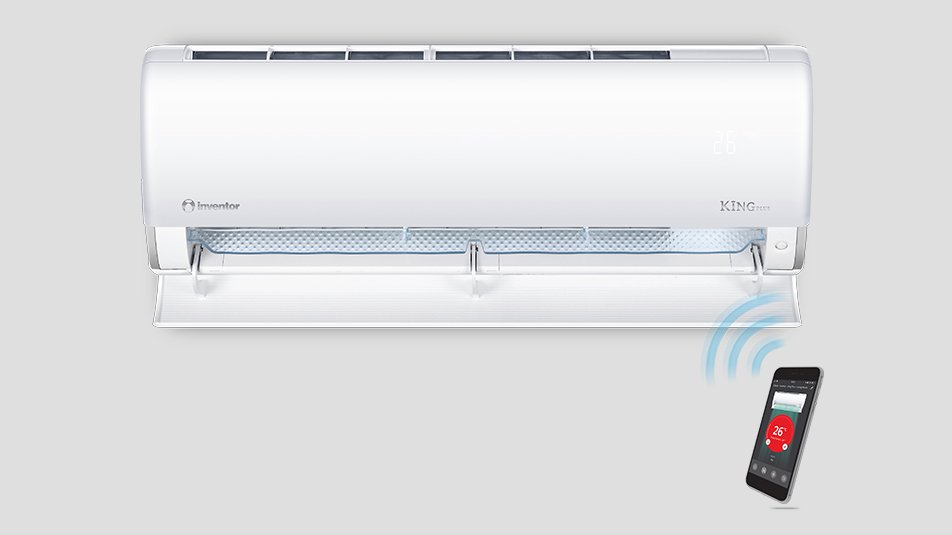

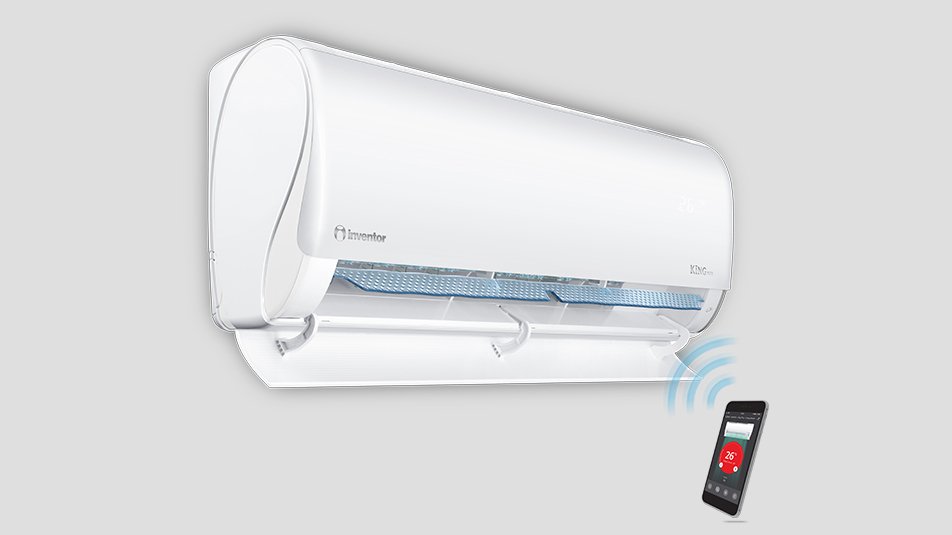

Manage the operation of your air conditioner easily from wherever you are, with your Smartphone or Tablet. Free download the application via Google Play & App Store, depending on the series you have and achieve optimal temperature conditions with great energy savings.
Smart Dehumidification Function
Enjoy optimal conditions, without the unpleasant feeling of dry air or high humidity, with the Smart Dehumidification function. The built-in humidity sensor allows the air conditioner to automatically maintain the air humidity between 40% and 55%. With the touch of a button, you can always know the humidity level, seen on the display panel. *During the smart dehumidification, the air conditioner operates in cooling mode.
Powerful Self-Cleaning
The self-cleaning feature cleans the indoor unit effectively, removing dust, pollen, and microorganisms that accumulate from air conditioning use. Additionally, it diminishes excess moisture within the indoor unit generated during cooling mode. To maintain peak performance and ensure proper maintenance, it's best to conduct internal cleaning every month.
4 Way Air Flow
Ensure even distribution of air in all directions and cover even the most difficult parts of the room. The design of the series of air conditioners allows both horizontal and vertical movement of the blinds. Carefree & enjoy absolute comfort in every part of your home.
Smart Air Distribution
Meet your needs effectively, thanks to the special design for air distribution. Choose to diffuse air to the ceiling of the room for cooling mode to cool down quickly, avoiding exposure to cold air or to the floor in operation mode. heating, offering a warm atmosphere quickly. Enjoy ideal conditions in all seasons.
10°C Heating
Avoid possible weather disasters in places that are not heated during the winter, in the most economical way. Turn on the 10°C function and the air conditioner will heat the room as needed, keeping the temperature constant at 10°C. Protect the items in your space and ensure low consumption with maximum energy savings during the winter.
Technical Specifications
- Cooling Capacity8.870 (3.410-13.650) Btu / h
- Cooling Capacity2.6 (1.0-4.0) kWatt
- Heating Capacity10.920 (3.750-18.420） Btu / h
- Heating Capacity3.2 (1.1-5.4） kWatt
- Seasonal Efficiency
(In accordance to EN14825) - Cooling
- Pdesign2.6 kW
- Energy ClassA+++
- SEER8.75
- Annual Power Consumption104 kWh / year
- HeatingMiddle Zone
- Pdesign2.6 kW
- Energy ClassA+++
- SCOP5.1
- Annual Power Consumption714 kWh / year
- HeatingWarm Zone
- Pdesign2.8 kW
- Energy ClassA+++
- SCOP6.2
- Annual Power Consumption632 kWh / year
- Voltage / Frequency / Phase230 / 50 / 1 V / Hz / Ph
- Current Input8.0 Α
- Power Input – Cooling0.57 (0.30-1.50) kW
- Power Input – Heating0.66 (0.30-1.85) kW
- Air Flow Volume (High/Medium/Low)550 m³ / h
- Noise Level – Indoor unit
(Silence/Low/Medium/High)15/29/32/36 db(A) - Noise Level – Outdoor unit48 db(A)
- Sound Power Level – Indoor unit56 db(A)
- Sound Power Level – Outdoor unit61 db(A)
- Dehumidifying Volume1.2 L/h
- Dehumidifying Volume28.8 L/day
- Compressor TypeROTARY
- Liquid line | Gas line1 / 4” – 3 / 8”
- Power Supply Wire Outdoor / Fuses3 × 1.5 / 10 No x mm² / Α
- Signal Wires4 × 1.5 No x mm²
- Dimensions –
Indoor unit
(WxDxH)923x215x320 mm - Dimensions –
Outdoor unit
(WxDxH)800x275x553 mm - Net Weight –
Indoor / Outdoor12.0/29.8 kg - Refrigerant/ChargeR32/740 g
- Outdoor Operation Temperature Range – Cooling-20~43 °C
- Outdoor Operation Temperature Range – Heating-20~24 °C
More
24-hour Timer
Set the unit to start and stop automatically in a 24h period.
Sleep Mode
With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.
Low Ambient Cooling at -20°C
The outdoor unit’s special design produces an efficient and effective cooling operation even at -20°C.
Low Ambient Heating at -20°C
The outdoor unit’s special design produces an efficient and effective heating operation even at -20°C.
Anti-Cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation.
Auto Swing Louver
Distributes cool/warm air to maximum area by moving horizontal flaps automatically.
Louver Position Memory
Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
Turbo Mode
This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
Easy motor and electronic circuit maintenance
Removing the motor and the board is now an easy process as no disassembly of the other parts of the air conditioner is required. This saves 80% less time on air conditioner maintenance.
Removable cover for ease of installation
The technician now needs less time to install or maintain the device. The lid is easily removed from the bottom of the air conditioner so that the coolant can easily make the necessary connections without the use of tools.
48% Larger piping space
Thanks to the support base that extends to the back of the air conditioner, the technician ensures up to 48% more space during installation to complete the work comfortably and faster.
Refrigerant Leakage Detect
Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected.
Auto Error Diagnosis
The device has a flexible clip that facilitates its installation, while offering convenience during the service process.
Two-way Draining
Both left and right sides of the indoor unit are possible for drainage hose connection, easy for installation.
High Density Air Dust Filter
The exquisite filter optimizes the filtering effect by 40%.
R32 ECO Refrigerant
The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.
Lock
Engage the lock function to prevent anyone from changing the settings or children playing with the unit.
