Description
Upgraded functions for total flexibility!
5 Year Warranty for all Inventor Air Conditioners
All Inventor Air Conditioners are accompanied with a 5-year warranty card. Their high production quality ensures their impeccable performance and long term operation, even in the most demanding conditions.
Eurovent certification
Features

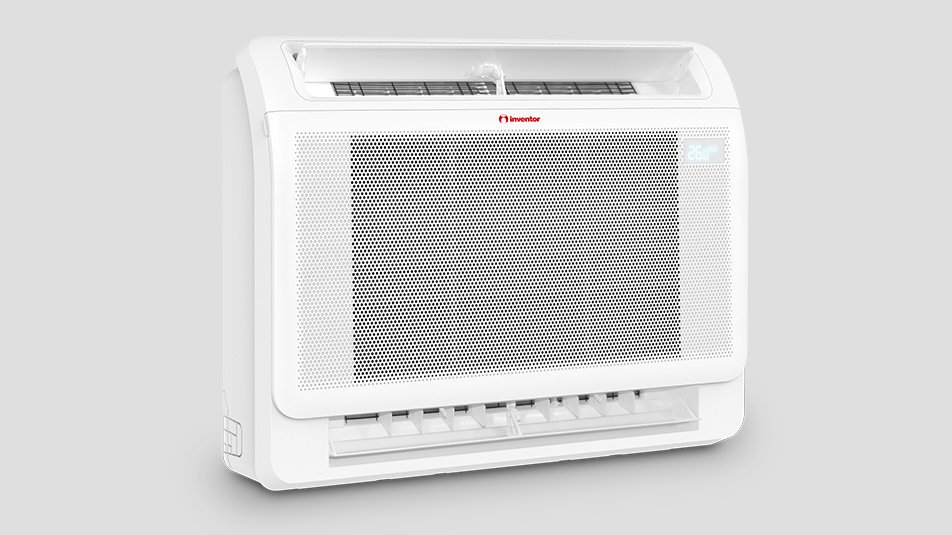

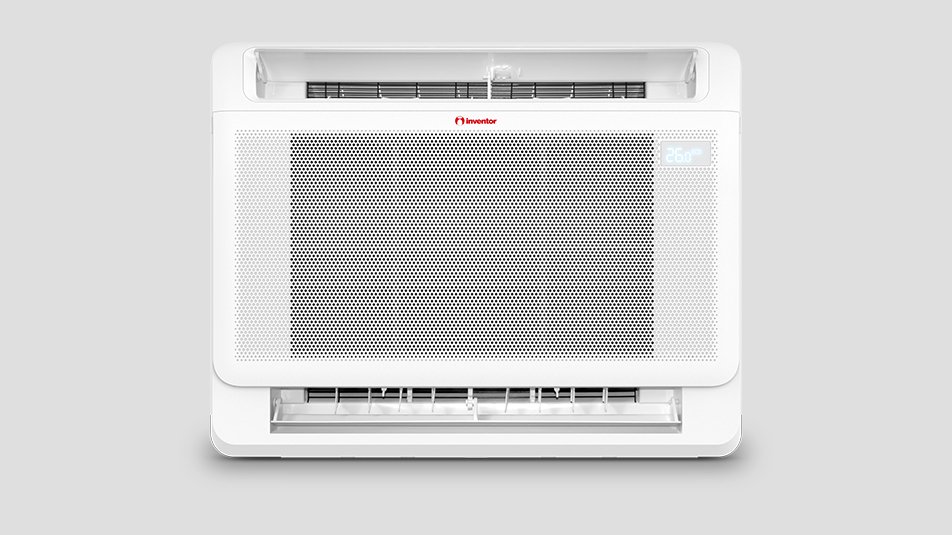

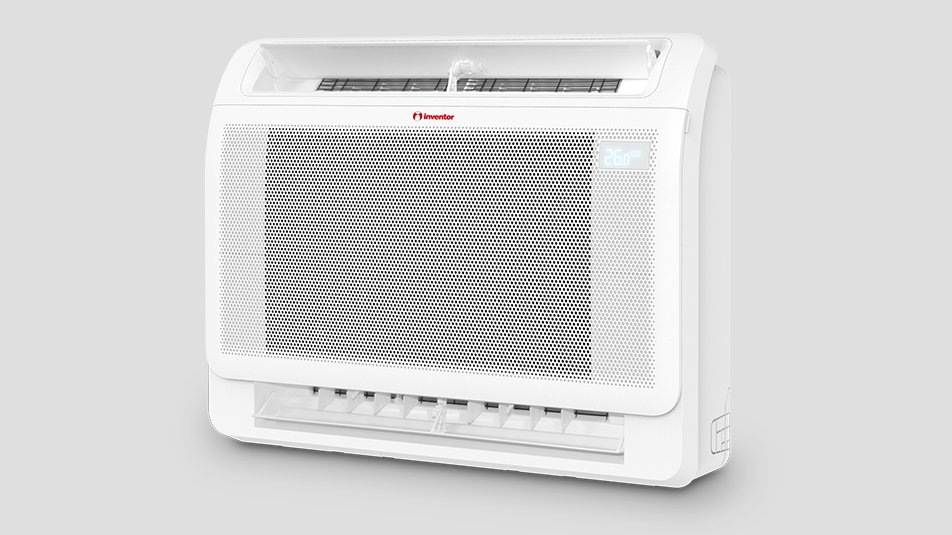

Double Air Outlet
Air outlets on top and bottom to enjoy fast heating, while ensuring running cost are kept low.
Weekly Planner Controller (Optional)
Benefit from the Weekly Planner and set the air conditioner’s operating period according to your needs, ensuring maximum energy and money savings. The new advanced wired controller indicates the error codes and enables you to set the room temperature sensor via the wired controller instead of the air conditioner unit.
Wi-Fi Ready
Control your climate easily from wherever, with your Smartphone or Tablet. Download the app, Invmate II, for free via Google Play & App Store and set your temperature conditions.
Follow Me
A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.
ECO Mode
Save energy with the ECO function that automatically adjusts the air conditioner temperature to 24°C, while setting the fan function to automatic. The possibility of activation concerns only the Cooling function and in case we program it while we already have a set temperature higher than 24°C, the device maintains the highest value.
Double air outlet
Weekly Planner Controller (Optional)
Wi-Fi Ready
Follow Me
ECO Mode
BMS Connectivity
Benefits
Hotel Menu
Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.
Central Control Management (Optional)
The centralized multi-functional device can control up to 64 indoor units within a maximum connection length of 1200m. Control your air conditioner, set the temperature you want and select the mode you desire. Ideal for hotel & business units. *Requires separate purchase of connection kit
Remote On/Off
The variety of options provided by the pre-installed ON/OFF contact gives you the flexibility you need to manage your air conditioners, while saving time and energy. Install Door Switch or remote switches to turn units on or off easily and instantly.
BMS Connectivity
Complete your connected products portfolio by integrating Inventor air conditioners into your BMS (Building Management System). Create an integrated ecosystem that includes air conditioning, ventilation, lighting, and security systems, fully alignment with your building's needs. Enjoy quick, easy, and efficient management of all these different systems through central management and achieve optimum efficiency and comfort in your building. *Requires separate purchase of connection kit
iClean Mode
The iClean function ensures the best air quality in your space, removing accumulated dust, mold and bacteria from inside the unit.
Golden Fin
The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!
8°C Heating
Prevent potential weather damages in places that are not heated and pose risks during the winter. Enable the 8°C function and the air conditioner only heats the room as needed while maintaining a stable room temperature of 8°C.
Fan On/Off Switch
With the On / Off switch, you can choose whether you want the fan to continue operating after the unit is turned off or stop.
Error Alarm Port
Take the whole control of you unit! Thanks to the error code that will appear if an error occurs, you can always be safe and sure for the appropriate and most efficient operation of your air conditioner.
GEAR Mode
With the GEAR function you achieve great energy savings, limiting the maximum consumption of the unit. You can adjust the performance in two stages, at 75% of maximum efficiency and 50%. Take care of the right temperature in your space, reducing operating costs.
Technical Specifications
- Cooling Capacity12.000 Btu / h
- Cooling Capacity3.52 kWatt
- Heating Capacity13.000 Btu / h
- Heating Capacity3.81 kWatt
- Voltage / Frequency / Phase220-240 / 50 / 1 V / Hz / Ph
- Current Input – Cooling4.5 A
- Current Input – Heating4.4 A
- Power Input – Cooling1.00 kW
- Power Input – Heating0.98 kW
- Air Flow Volume (High / Medium / Low)512/480/370 m³ / h
- Noise Level (Silent / Low / Medium / High)21/27/34/37 dB(A)
- Sound Power Level54 dB(A)
- Dimensions (WxDxH)794x206x621 mm
- Net Weight14.9 kg
- Liquid Line – Gas Line1 / 4” – 3 / 8”
- Cooling Capacity17.000 Btu / h
- Cooling Capacity4.98 kWatt
- Heating Capacity18.000 Btu / h
- Heating Capacity5.28 kWatt
- Voltage / Frequency / Phase220-240/50/1 V / Hz / Ph
- Current Input – Cooling6.7 A
- Current Input – Heating6.4 A
- Power Input – Cooling1.50 kW
- Power Input – Heating1.42 kW
- Air Flow Volume (High / Medium / Low)560/480/400 m³ / h
- Noise Level (Silent / Low / Medium / High)24/32/38/41 dB(A)
- Sound Power Level55 dB(A)
- Dimensions (WxDxH)794x206x621 mm
- Net Weight14.9 kg
- Liquid Line – Gas Line1 / 4” – 1 / 2”
More
24-hour Timer
Set the unit to start and stop automatically in a 24h period.
Quiet Operation
Enjoy excellent temperature conditions and tranquil atmosphere. The advanced design of the unit, featuring larger gaps between air ducts and an improved fan tilt, facilitates airflow and ensures quiet, efficient performance. Additionally, Silent Mode further reduces noise levels, allowing you to enjoy a perfect atmosphere undisturbed.
Fan On/Off Switch
With the On / Off switch, you can choose whether you want the fan to continue operating after the unit is turned off or stop.
Turbo Mode
This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.
Weekly Program Delay (Optional with the Weekly Planner Controller)
Enjoy the flexibility offered by the Delay function, postponing the activation of the weekly schedule for up to 3 hours. Change your device settings for a specific day without changing your weekly schedule settings.
Operation aSleep ModeMode Lock (Optional with the Weekly Planner Controller)
Ensure the operation of your appliance in cooling or heating without interference. With the locking feature, the operation of the air conditioner cannot be changed, avoiding incorrect settings, and offering a more correct and economical operation. Ideal for workplaces or hotel rooms.
Remote Controller Commands Deactivation (Optional with the Weekly Planner Controller)
Turn off the ability to use the wireless controller to adjust your air conditioner to ensure central control of the device from a single point. Suitable for business premises and hotels.
Temperature Offset Function
The perceived temperature by the indoor unit sensor may vary from the real temperature of the room, due to the position of the unit. Thanks to this function you can minimize the difference and achieve better conditions in your place.
Anti-Cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation.
Low Ambient Cooling
The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.
Excellent Heating Performance Under -15°C
Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.
Auto Error Diagnosis
Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.
Auto Restart
If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.
All DC Inverter
The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.
